TRACTION
RIB
(TR)
The most popular rib pattern for all position light truck tyres.
CUSTOMER BENEFITS
- Tough and long lasting
- Minimum heat build-up
- Engineered for excellent steerability at front and strong traction at drive position
PRODUCT FEATURES
- Rib type pattern
- Flat tread
- Strong nylon casing

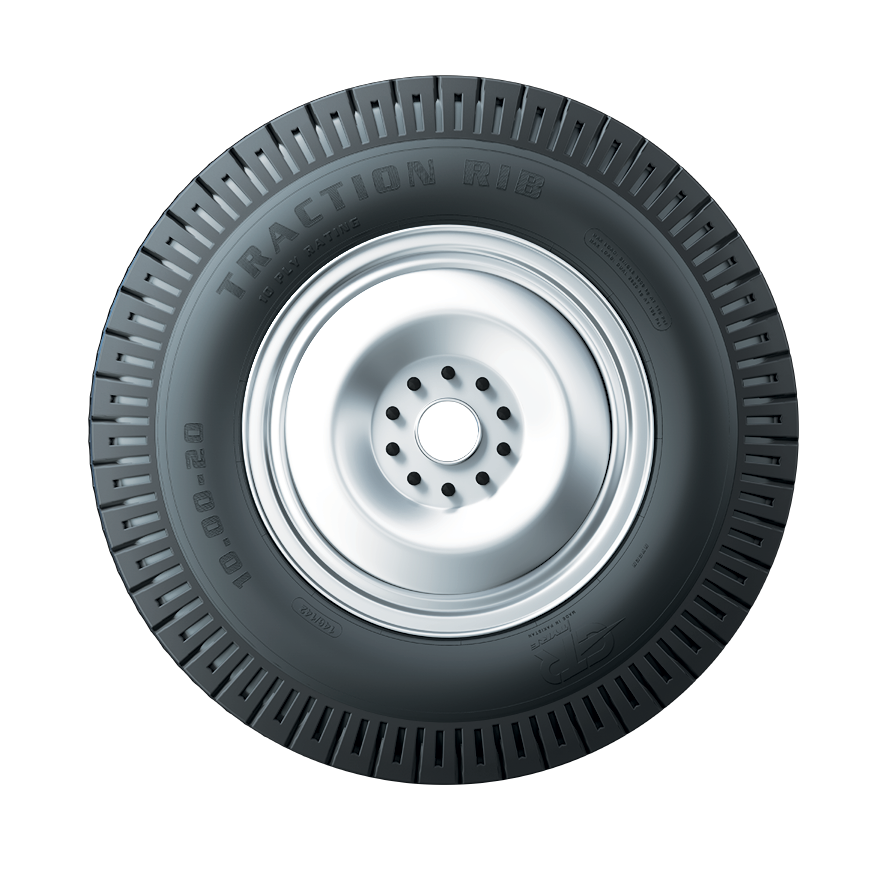

TRACTION RIB (TR)
| Size | 6.50-16 |
|---|---|
| Pattern | Rib |
| Load Index | E/G |
| Ply Rating | 10/14 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 755 |
| Over All Width (mm) | 176 |
| TUBE | |
| Tube Size | 6.50-16 |
| Valve Code | TR-75A |
| RIM | |
| Size/Code | 5.0” x 16” |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 975/1100 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| Dual | |
| Max Load (KG) | 875/990 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| FLAP | |
| Code | 406-180LT |
| Size | 7.00-16 |
|---|---|
| Pattern | Rib |
| Load Index | G |
| Ply Rating | 14 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 794 |
| Over All Width (mm) | 200 |
| TUBE | |
| Tube Size | 7.00-16 |
| Valve Code | TR-75A |
| RIM | |
| Size/Code | 5.5” x 16” |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 1290 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| Dual | |
| Max Load (KG) | 1230 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| FLAP | |
| Code | 406-180LT |
| Size | 6.50-16 | 7.00-16 |
|---|---|---|
| Load Index | E/G | G |
| Pattern | Rib | Rib |
| Ply Rating | 10/14 | 14 |
| MAX INFLATED DIMENSION | ||
| Over All Diameter (mm) | 755 | 794 |
| Over All Width (mm) | 176 | 200 |
| TUBE | ||
| Tube Size | 6.50-16 | 7.00-16 |
| Valve Code | TR-75A | TR-75A |
| RIM | ||
| Size/Code | 5.0” x 16” | 5.5” x 16” |
| LOAD AND INFLATION | ||
| Single | ||
| Max Load (KG) | 975/1100 | 1290 |
| Max Pressure (PSI) | Follow Vehicle Manufacturer’s Recommendation | Follow Vehicle Manufacturer’s Recommendation |
| Dual | ||
| Max Load (KG) | 875/990 | 1230 |
| Max Pressure (PSI) | Follow Vehicle Manufacturer’s Recommendation | Follow Vehicle Manufacturer’s Recommendation |
| FLAP | ||
| Code | 406-180LT | 406-180LT |
| Size | Make | Type | Model | Year |
|---|---|---|---|---|
| 7.00-16 | ||||
| Hino | Junior dutro |
