SUPER
TIGER
(STGR)
The ultimate tyre for long haul service
CUSTOMER BENEFITS
- For tough and long lasting service
- Light yet strong, heat resistant carcass
- Provides excellent traction in drive wheel applications
PRODUCT FEATURES
- Nylon construction
- Wide deep lugs

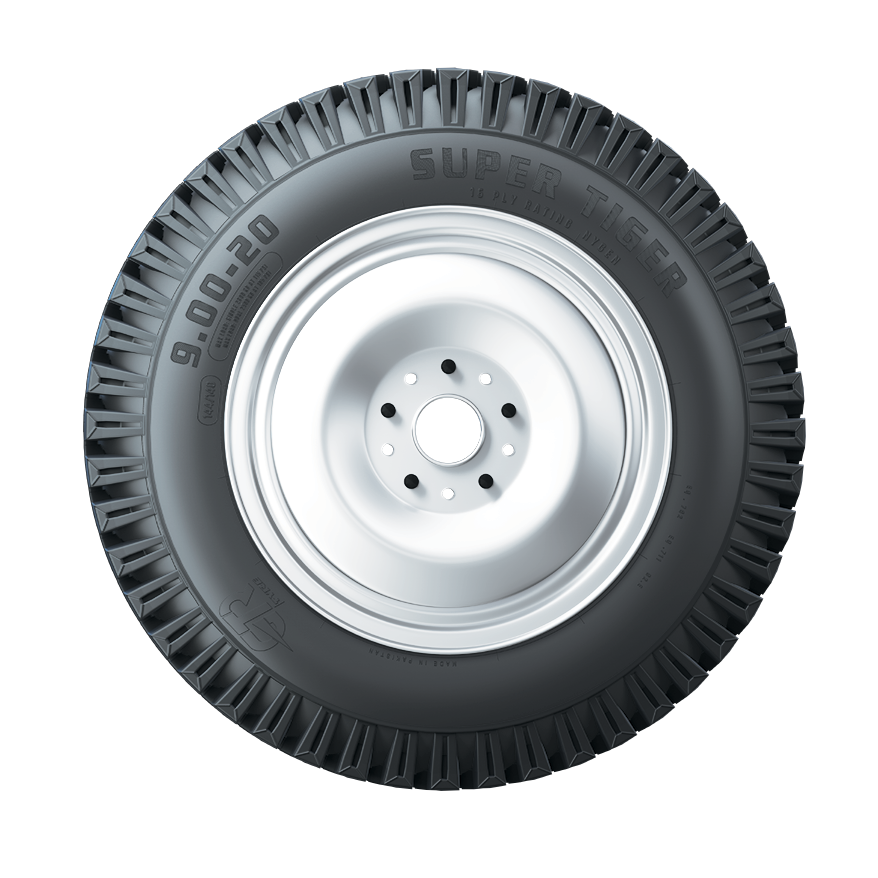

SUPER TIGER (STGR)
| Size | 9.00-20 |
|---|---|
| Pattern | Lug |
| Load Index | H |
| Ply Rating | 16 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 1020 |
| Over All Width (mm) | 250 |
| TUBE | |
| Tube Size | 9.00-20 |
| Valve Code | V3.02.15 |
| RIM | |
| Size/Code | 7.0" X 20" |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 2800 |
| Dual | |
| Max Load (KG) | 2500 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| FLAP | |
| Code | 508-190 |
| Size | 10.00-20 |
|---|---|
| Pattern | Lug |
| Load Index | H |
| Ply Rating | 16 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 1080 |
| Over All Width (mm) | 272 |
| TUBE | |
| Tube Size | 10.00-20 |
| Valve Code | V3.02.15 |
| RIM | |
| Size/Code | 7.5" x 20" |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 3000 |
| Dual | |
| Max Load (KG) | 2650 |
| FLAP | |
| Code | 508-190 |
| Size | 11.00-20 |
|---|---|
| Pattern | Lug |
| Load Index | H |
| Ply Rating | 16 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 1100 |
| Over All Width (mm) | 295 |
| TUBE | |
| Tube Size | 11.00-20 |
| Valve Code | V3.05.15 |
| RIM | |
| Size/Code | 8.0” x 20” |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 3350 |
| Dual | |
| Max Load (KG) | 2900 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| FLAP | |
| Code | 502-203 |
| Size | 9.00-20 | 10.00-20 | 11.00-20 |
|---|---|---|---|
| Load Index | H | H | H |
| Pattern | Lug | Lug | Lug |
| Ply Rating | 16 | 16 | 16 |
| MAX INFLATED DIMENSION | |||
| Over All Diameter (mm) | 1020 | 1080 | 1100 |
| Over All Width (mm) | 250 | 272 | 295 |
| TUBE | |||
| Tube Size | 9.00-20 | 10.00-20 | 11.00-20 |
| Valve Code | V3.02.15 | V3.02.15 | V3.05.15 |
| RIM | |||
| Size/Code | 7.0" X 20" | 7.5" x 20" | 8.0” x 20” |
| LOAD AND INFLATION | |||
| Single | |||
| Max Load (KG) | 2800 | 3000 | 3350 |
| Dual | |||
| Max Load (KG) | 2500 | 2650 | 2900 |
| Max Pressure (PSI) | Follow Vehicle Manufacturer’s Recommendation | Follow Vehicle Manufacturer’s Recommendation | |
| FLAP | |||
| Code | 508-190 | 508-190 | 502-203 |
