SUPER
LOADER
Engineered for heavy duty services both on highway and off the road
CUSTOMER BENEFITS
- Wide flat tread design with centre rib and heavy shoulder gives strong gripping action on highway and off the road
- Tread rubber for heat resistance
- Strong body tyre that resists impact breaks
PRODUCT FEATURES
- New generation tread design
- Wide flat trade
- Nylon construction

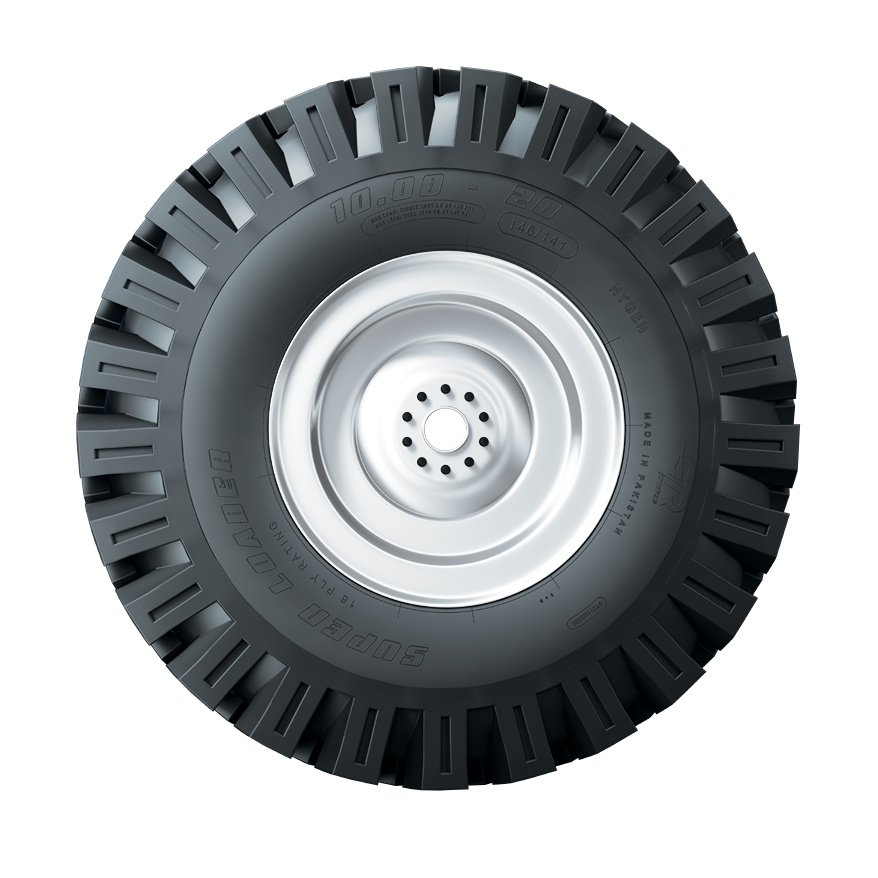

SUPER LOADER
| Size | 10.00-20 |
|---|---|
| Pattern | RIB/LUG |
| Load Index | H |
| Ply Rating | 16 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 1090 |
| Over All Width (mm) | 295 |
| TUBE | |
| Tube Size | 1000-20 |
| Valve Code | V3-02-15 |
| RIM | |
| Size/Code | 7.50” x 20” |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 3000 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| Dual | |
| Max Load (KG) | 2650 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| FLAP | |
| Code | 508-190 |
| Size | 12.00-20 |
|---|---|
| Pattern | RIB/LUG |
| Load Index | J |
| Ply Rating | 18 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 1122 |
| Over All Width (mm) | 306 |
| TUBE | |
| Tube Size | 12.00-20 |
| Valve Code | V3-02-15 |
| RIM | |
| Size/Code | 8.50” x 20” |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 3750 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| Dual | |
| Max Load (KG) | 3350 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| FLAP | |
| Code | 508-203 |
| Size | 10.00-20 | 12.00-20 |
|---|---|---|
| Load Index | H | J |
| Pattern | RIB/LUG | RIB/LUG |
| Ply Rating | 16 | 18 |
| MAX INFLATED DIMENSION | ||
| Over All Diameter (mm) | 1090 | 1122 |
| Over All Width (mm) | 295 | 306 |
| TUBE | ||
| Tube Size | 1000-20 | 12.00-20 |
| Valve Code | V3-02-15 | V3-02-15 |
| RIM | ||
| Size/Code | 7.50” x 20” | 8.50” x 20” |
| LOAD AND INFLATION | ||
| Single | ||
| Max Load (KG) | 3000 | 3750 |
| Max Pressure (PSI) | Follow Vehicle Manufacturer’s Recommendations | Follow Vehicle Manufacturer’s Recommendations |
| Dual | ||
| Max Load (KG) | 2650 | 3350 |
| Max Pressure (PSI) | Follow Vehicle Manufacturer’s Recommendations | Follow Vehicle Manufacturer’s Recommendations |
| FLAP | ||
| Code | 508-190 | 508-203 |
| Size | Make | Type | Model | Year |
|---|---|---|---|---|
| 10.00-20 | ||||
| Hino | Trucks front axle | |||
| Nissan | Truck front axle | |||
| Isuzu | Truck front axle | |||
| Hino | Trucks rear axle | |||
| Nissan | Truck rear axle |
