Every Journey Has A Destination
no
HEAVY
CONTRACT
TRANSPORT
(HCT)

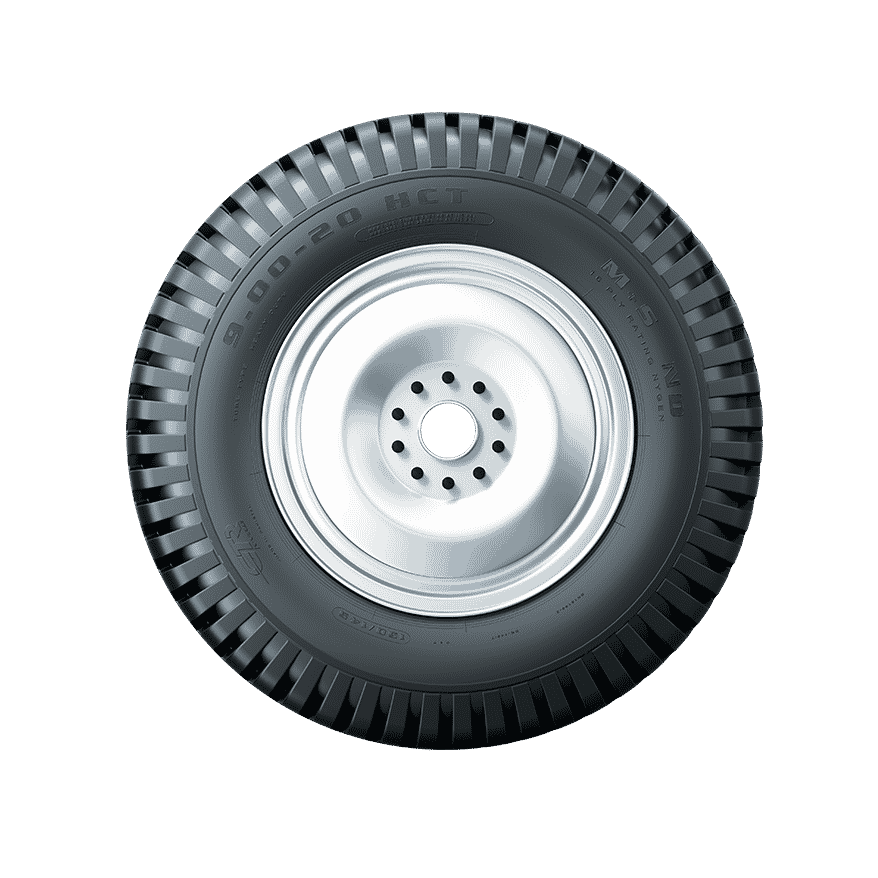

A non-directional pattern tyre for heavy duty service
CUSTOMER BENEFITS
- Tough and long lasting
- Provides excellent steerability at front and strong traction at drive position
- Good performance in all seasons
PRODUCT FEATURES
- Minimum heat build-up
- Strong and flexible tread rubber
- Mud & snow rated
HEAVY CONTRACT TRANSPORT (HCT)
| Size | 9.00-20 |
|---|---|
| Pattern | RIB/LUG |
| Load Index | G |
| Ply Rating | 14 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 1060 |
| Over All Width (mm) | 275 |
| TUBE | |
| Tube Size | 9.00-20 |
| Valve Code | TR-175A |
| RIM | |
| Size/Code | 7.0”x 20” |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 2575 |
| Dual | |
| Max Load (KG) | 2300 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| FLAP | |
| Code | 508-190 |
| Size | 10.00-20 |
|---|---|
| Pattern | RIB/LUG |
| Load Index | H |
| Ply Rating | 16 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 1095 |
| Over All Width (mm) | 290 |
| TUBE | |
| Tube Size | 10.00-20 |
| Valve Code | V3.02.15 |
| RIM | |
| Size/Code | 7.50”x 20” |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 3000 |
| Dual | |
| Max Load (KG) | 2650 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| FLAP | |
| Code | 508-190 |
| Size | 11.00-20 |
|---|---|
| Pattern | RIB/LUG |
| Load Index | H |
| Ply Rating | 12 / 16 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 1120 |
| Over All Width (mm) | 305 |
| TUBE | |
| Tube Size | 11.00-20 |
| Valve Code | V3.02.15 |
| RIM | |
| Size/Code | 8.0”x 20” |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 2725 / 3350 |
| Dual | |
| Max Load (KG) | 2360 / 2900 |
| Max Pressure (PSI) | Follow Vehicle Manufacturers Recommendations |
| FLAP | |
| Code | 502-203 |
| Size | 12.00-20* |
|---|---|
| Pattern | RIB/LUG |
| Load Index | J |
| Ply Rating | 18 |
| MAX INFLATED DIMENSION | |
| Over All Diameter (mm) | 1155 |
| Over All Width (mm) | 320 |
| TUBE | |
| Tube Size | 12.00-20 |
| Valve Code | V3.02.15 |
| RIM | |
| Size/Code | 8.5”x 20” |
| LOAD AND INFLATION | |
| Single | |
| Max Load (KG) | 3750 |
| Dual | |
| Max Load (KG) | 3350 |
| FLAP | |
| Code | 508-203 |
| Size | 9.00-20 | 10.00-20 | 11.00-20 | 12.00-20* |
|---|---|---|---|---|
| Load Index | G | H | H | J |
| Pattern | RIB/LUG | RIB/LUG | RIB/LUG | RIB/LUG |
| Ply Rating | 14 | 16 | 12 / 16 | 18 |
| MAX INFLATED DIMENSION | ||||
| Over All Diameter (mm) | 1060 | 1095 | 1120 | 1155 |
| Over All Width (mm) | 275 | 290 | 305 | 320 |
| TUBE | ||||
| Tube Size | 9.00-20 | 10.00-20 | 11.00-20 | 12.00-20 |
| Valve Code | TR-175A | V3.02.15 | V3.02.15 | V3.02.15 |
| RIM | ||||
| Size/Code | 7.0”x 20” | 7.50”x 20” | 8.0”x 20” | 8.5”x 20” |
| LOAD AND INFLATION | ||||
| Single | ||||
| Max Load (KG) | 2575 | 3000 | 2725 / 3350 | 3750 |
| Dual | ||||
| Max Load (KG) | 2300 | 2650 | 2360 / 2900 | 3350 |
| Max Pressure (PSI) | Follow Vehicle Manufacturer’s Recommendation | Follow Vehicle Manufacturer’s Recommendation | Follow Vehicle Manufacturer’s Recommendation | |
| FLAP | ||||
| Code | 508-190 | 508-190 | 502-203 | 508-203 |
| Size | Make | Type | Model | Year |
|---|---|---|---|---|
| 11.00-20 | ||||
| Hino | Bias | Truck rear axle | ||
| Nissan | Bias | Truck rear axle | ||
| Nissan | Bias | Truck front axle | ||
| Isuzu | Bias | Truck rear axle | ||
| Isuzu | Bias | Truck front axle | ||
| 9.00-20 | ||||
| Hino | Bias | Truck fl 3hr 6x2 | ||
| Hino | Bias | Truck ff 3hr 4x2 | ||
| Nissan | Bias | Truck cpa 14 4x2 | ||
| Nissan | Bias | Truck cpa 12 4x2 | ||
| Nissan | Bias | Truck cpa 87 4x2 | ||
| Isuzu | Bias | Bus ml 112 4x2 | ||
| Isuzu | Bias | Truck ftr 4x2 | ||
| Bedford | Bias | Truck rear axle |
